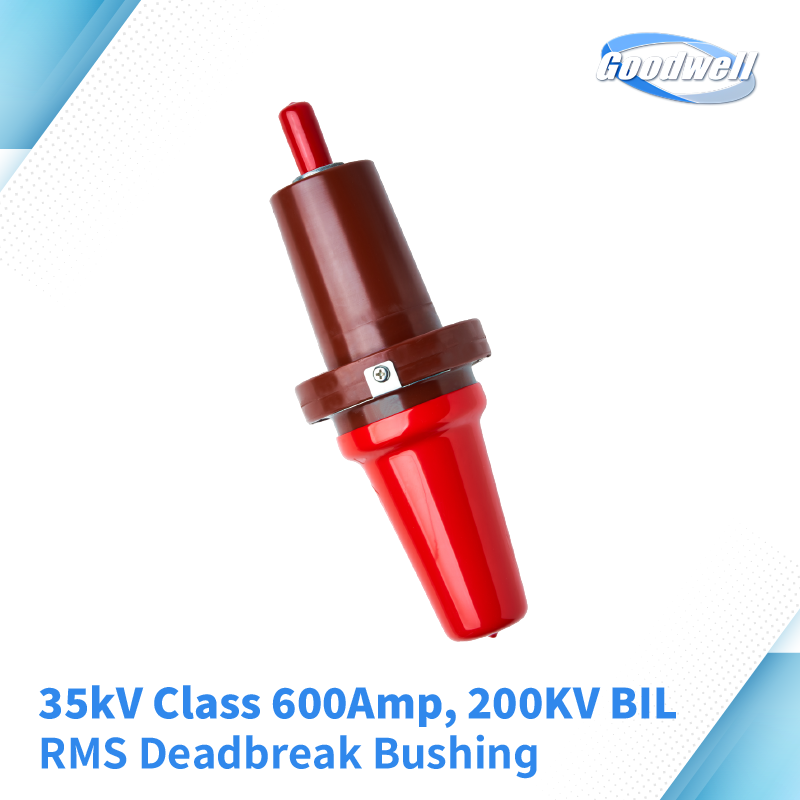

Introducing the 35kV Class 600Amp RMS Deadbreak Bushing with 200kV BIL from Goodwell Electric Corp., engineered for maximum reliability and performance in transformers, switches, and high-voltage apparatuses using mineral transformer oil or approved equivalents. Constructed with durable epoxy polymer and an integrated stainless steel ground shield, this advanced bushing ensures automatic grounding through factory-installed ground clips. Compliant with IEEE Std. 386-2016, it supports all 600 Amp rms separable connectors, delivering outstanding conductivity with its aluminum conductor and 100% PD-tested for consistent reliability. With a 35kV voltage rating, 50kV AC withstand voltage, and a powerful 200kV BIL, it offers superior insulation, discharge control, and the ability to handle continuous 600A currents and short surges up to 25kA. Designed for easy installation with no special tools, this bushing is optimal for enhancing power system stability and longevity. The following are the features of the product.
Product Features:
➥ IEEE Std. 386-2016 Compliant: Meets the highest industry standards for separable insulated connector systems, compatible with all 600 Amp rms separable connectors.
➥ Aluminum Conductor: Ensures excellent conductivity and reliable performance in high-voltage applications.
➥ Effortless Installation: Stainless steel clamps are included for easy, secure mounting with no special tools required.
➥ 100% PD Tested: Guaranteed quality, rigorously tested to ensure flawless performance with minimal partial discharge.
➥ 200kV BIL Protection: Withstands high impulse voltages, offering maximum protection in high-stress environments.
Technical Data:
➥ Voltage and Current Ratings: 35kV Class
➥ Operating Voltage: Maximum Phase-to-Ground: 21.1kV
➥ Withstand Voltage:
॰ AC: 60Hz, 60 sec, 50kV
॰ DC: 15 minutes, 103kV
➥ Impulse Voltage Withstand: BIL and Full Wave Crest, 200kV
➥ Corona Extinction Level: <3pC, 26kV
➥ Continuous Current: 600Amp
➥ Short Time Current:
॰ 25kA rms, sym., 0.17s
॰ 10kA rms, sym., 3.0s
